Turns on and off a light emitting diode(LED)
Johnny-Five is the JavaScript Robotics & IoT Platform. Released by Bocoup in 2012, Johnny-Five is maintained by a community of passionate software developers and hardware engineers. Over 75 developers have made contributions towards building a robust, extensible and composable ecosystem.
about johnny-five here
Turns on and off a light emitting diode(LED) connected to digital
pin 13, when pressing a pushbutton attached to pin 7.
Setup and Assemble Arduino
- Download Arduino IDE
- Plug in your Arduino or Arduino compatible microcontroller via USB
- Open the Arduino IDE, select: File > Examples > Firmata > StandardFirmataPlus
- StandardFirmataPlus is available in Firmata v2.5.0 or greater
- Click the “Upload” button.
If the upload was successful, the board is now prepared and you can close the Arduino IDE.
Fritzing diagram: button-bumper.fzz
- LED attached from pin 13 to ground
- Pushbutton attached to pin 7 from +5V
- 10K resistor attached to pin 7 from ground
- Note: on most Arduinos there is already an LED on the board
attached to pin 13.

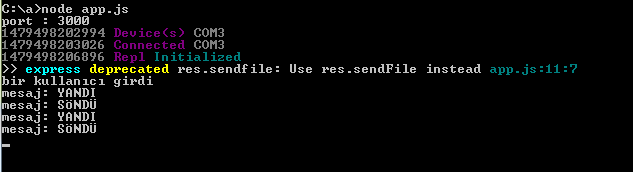

Console
Button Down
Button Up
