ABAP unit testing framework, prepare in Excel, reuse in abap code
Mockup loader is a tool to simplify data preparation for SAP ABAP unit tests. Create unit test data in Excel, easily convert it into MIME object that travels with ABAP package, easily consume the data from your unit test code. The tool was created with the following high level goals in mind:
Features:
The tool is created to simplify data preparation/loading for SAP ABAP unit tests. In one of our projects we had to prepare a lot of table data for unit tests. For example, a set of content from BKPF, BSEG, BSET tables (FI document). The output of the methods under test is also often a table or a complex structure.
Hard-coding all of that data was not an option - too much to code, difficult to maintain and terrible code readability. So we decided to write a tool which would get the data from TAB delimited .txt files, which, in turn, would be prepared in Excel in a convenient way. Certain objectives were set:
.txt file, if required (non strict mode) e.g. when processing structures (like FI document) with too many fields, most of which are irrelevant to a specific test.
" Test class (o_ml is mockup_loader instance)...o_ml->load_data( " Load test data (structure) from mockupexportingi_obj = 'TEST1/bkpf'i_strict = abap_trueimportinge_container = ls_bkpf ).o_ml->load_data( " Load test data (table) from mockupexportingi_obj = 'TEST1/bseg'i_strict = abap_falseimportinge_container = lt_bseg )...." Call to the code-under-testo_test_object->some_processing(exportingi_bkpf = ls_bkpfit_bseg = lt_bseg ).assert_equals(...).
The first part of the code takes TAB delimited text file bkpf.txt in TEST1 directory (file names are case-insensitive) of ZIP file uploaded as binary object via SMW0 transaction…
BUKRS BELNR GJAHR BUZEI BSCHL KOART ...1000 10 2015 1 40 S ...1000 10 2015 2 50 S ...
… and puts it (with proper ALPHA exits and etc) to an internal table with BSEG line type.
On-the-fly data filtering is supported. For more information see REFERENCE.md.
Calls with importing/exporting are less readable, especially when stack together. In search of more readable options there are several experimental forms to achieve the same result. Use with care yet, they might be changed. Feedback via github issues is appreaciated.
ml->to( lr )->load_data( 'test-mock-path' )." where lr is a `ref to data`" works nicely in newer releases, but requires extra `get reference of` in older" so also:ml->load( 'test-mock-path' )->into( changing data = lt_data )." which works in 7.02 and reads well enough
Since 2.0.0 mockup loader supports generating of interface stubs.
It creates an instance object which implements the given interface where one or more methods retrieve the data from the mockup.
data lo_factory type ref to zcl_mockup_loader_stub_factory.data lo_ml type ref to zcl_mockup_loader.lo_ml = zcl_mockup_loader=>create(i_type = 'MIME'i_path = 'ZMOCKUP_LOADER_EXAMPLE' ). " <INIT YOUR MOCKUP>create object lo_factoryexportingio_ml_instance = lo_mli_interface_name = 'ZIF_MOCKUP_LOADER_STUB_DUMMY'. " <YOUR INTERFACE TO STUB>" Connect one or MANY methods to respective mockupslo_factory->connect_method(i_method_name = 'TAB_RETURN' " <METHOD TO STUB>i_mock_name = 'EXAMPLE/sflight' ). " <MOCK PATH>data li_ifstub type ref to ZIF_MOCKUP_LOADER_STUB_DUMMY.li_ifstub ?= lo_factory->generate_stub( )." Pass the stub to code-under-test, the effect is:...data lt_res type flighttab.lt_res = li_ifstub->tab_return( i_connid = '1000' )." lt_res contains the mock data ...
… and with filtering
...lo_factory->connect_method(i_method_name = 'TAB_RETURN' " <METHOD TO STUB>i_sift_param = 'I_CONNID' " <FILTERING PARAM>i_mock_tab_key = 'CONNID' " <MOCK HEADER FIELD>i_mock_name = 'EXAMPLE/sflight' ). " <MOCK PATH>...
This will result in the data set where key field CONNID will be equal to I_CONNID parameter actually passed to interface call.
IS_PARAMS-CONNID.I_CONNID above can be a range parameterReturning, exporting and changing parameters are supported. For more information see REFERENCE.md.

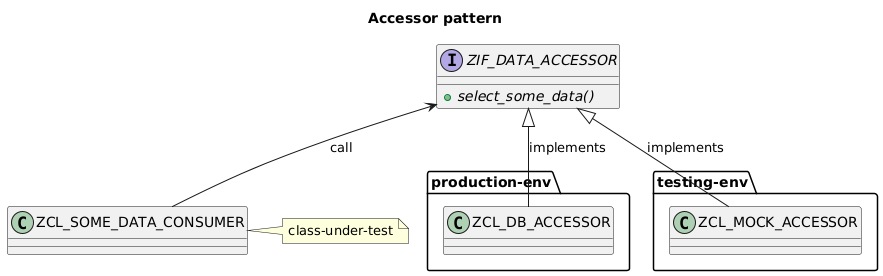

In addition, forwarding calls to another object (implementing same interface) is supported. For example if some of accessor methods must be connected to mocks and some others were implemented manually in a supporting test (or real production) class. See REFERENCE.md.
It is possible to return just one field of the first matching record e.g. Document type of a document selected by number. For this specify the field to return in I_FIELD_ONLY param. See REFERENCE.md.
And finally a feature that is not related to mocks - passing I_CONST_VALUE would return this value instead of loading data from text mock.
Available since v2.1.6.
The above connect_method/proxy configuration can be also done with a single string. See REFERENCE.md for details.
...lo_factory->connect( 'tab_return -> EXAMPLE/sflight' ).lo_factory->connect( 'tab_return -> EXAMPLE/sflight [connid = i_connid]' ).lo_factory->connect( 'tab_return -> EXAMPLE/sflight [connid = "XYZ_ID"]' ).lo_factory->connect( 'tab_return -> EXAMPLE/sflight(this_field_only) [connid = i_connid]' ).lo_factory->connect( 'tab_return -> EXAMPLE/sflight(?) [connid = i_connid]' ). " boolc("record exists")lo_factory->connect( 'tab_export(e_tab) -> EXAMPLE/sflight' ). " write output to e_tab param (exports)lo_factory->connect( 'tab_return -> ~EXAMPLE/sflight [connid = i_connid]' ). " corresponding onlylo_factory->connect( 'tab_return -> =exact_value' ).lo_factory->connect( 'tab_return -> *' ). " proxy" and also a shorter version, using the set_default_mock()lo_factory->set_default_mock( 'EXAMPLE' ).lo_factory->connect( 'tab_return -> ./sflight [connid = i_connid]' )." Multi condition also supportedlo_factory->connect( 'tab_return -> ./sflight [connid = i_connid, fldate = i_fldate]' ). " ANDlo_factory->connect( 'tab_return -> ./sflight [connid = i_connid & fldate = i_fldate]' ). " ANDlo_factory->connect( 'tab_return -> ./sflight [connid = i_connid | fldate = i_fldate]' ). " ORlo_factory->connect( 'tab_return_2conn -> ./sflight [connid = i_connid | connid = i_connid2 ]' ). " Same field multi-filtert" Multiple connection for exporting params of the same method is supportedlo_factory->connect( 'read_sales_invoice(e_vbrk) -> ./vbrk [vbeln = i_vbeln]' ).lo_factory->connect( 'read_sales_invoice(e_vbrp) -> ./vbrp [vbeln = i_vbeln]' ). " Same method, another exporting param
Generated stub instance implements ZIF_MOCKUP_LOADER_STUB_CONTROL interface, which allows:
Available since v2.1.0.
If you have a target data with deep fields - tables or structures - it is possible to fill them in one run. Let’s consider a simple example: assume you have 2 linked tables - header and lines - the tables are represented by separate files in zip.
DOCUMENT========ID DATE ...1 ...2 ...LINES========DOCID LINEID AMOUNT ...1 1 100.00 ...1 2 123.00 ...2 1 990.00 ...
The target structure is:
types:begin of ty_line,docid type numc10,lineid type numc3," ...end of ty_line,tt_line type table of ty_line,begin of ty_document,id type numc10," ...lines type tt_line, " <<< DEEP FIELD, supposed to be filled with lines of the documentend of ty_document.tt_documents type table of ty_document.
The following code will load this kind of structure
o_ml->load_data(exportingi_obj = 'path_to_head_file'i_deep = abap_true " <<< ENABLE DEEP LOADINGimportinge_container = lt_docs ). " <<< type tt_documents
To instruct mockup loader how to find the data for deep components you have to fill these components in the text in special format: <source_path>[<source_id_field>=<value|@reference_field>] which means “go find source_path file, parse it, extract the lines, filter those where source_id_field = value or reference_field value of the current header record”. For example:
DOCUMENT========ID DATE ... LINES1 ... path_to_lines_file[docid=@id]2 ... path_to_lines_file[docid=12345]
For the first record the mockup loader will find file path_to_lines_file.txt and load the lines with docid = 1 (value of id field of the first record). For the second record the explicit value 12345 will be used as the filter.
Disclaimer: There is an opinion that adding test-related code to the production code is a ‘code smell’. I sincerely agree in general. If the code was designed to use e.g. accessor interfaces from the beginning this is good. Still ‘store’ functionality can be useful for older pieces of code to be tested without much refactoring.
Some code is quite difficult to test when it has a db select in the middle. Of course, good code design would assume isolation of DB operations from business logic code, but it is not always possible (or was not done in proper time). So we needed to create a way to substitute selects in code to a simple call, which would take the prepared test data instead if test environment was identified. We came up with the solution we called store.
" Test class (o_mls is mockup_loader_STORE instance)...o_mls->store( " Store some data with 'BKPF' labeli_name = 'BKPF'i_data = ls_bkpf ). " One line structure..." Working class method...if is_test_env = abap_false. " Production environment detectedselect ... from db ...else. " Test environment detectedzcl_mockup_loader_store=>retrieve(exporting i_name = 'BKPF'importing e_data = ls_fi_doc_headerexceptions others = 4 ).endif.if sy-subrc is not initial." Data not selected -> do error handlingendif.
In case of multiple test cases it can also be convenient to load a number of table records and then filter it based on some key field, available in the working code. This option is also possible:
" Test class...o_mls->store( " Store some data with 'BKPF' labeli_name = 'BKPF'i_tabkey = 'BELNR' " Key field for the stored tablei_data = lt_bkpf ). " Table with MANY different documents..." Working class method...if is_test_env = abap_false. " Production environment detected" Do DB selects hereelse. " Test environment detectedzcl_mockup_loader_store=>retrieve(exportingi_name = 'BKPF'i_sift = l_document_number " <<< Filter key from real local variableimportinge_data = ls_fi_doc_header " Still a flat structure hereexceptions others = 4 ).endif.if sy-subrc is not initial." Data not selected -> error handlingendif.
As the final result we can perform completely dynamic unit tests, covering most of code, including DB select related code without actually accessing the database. Of course, it is not only the mockup loader which ensures that. This requires accurate design of the project code, separating DB selection and processing code. The mockup loader and “store” functionality makes it more convenient.
The zcl_mockup_loader has a shortcut method load_and_store to load data to the store directly without technical variables. For more information see REFERENCE.md.
Some design facts about the store:
ZCL_MOCKUP_LOADER_STORE is designed as a singleton class. So it is initiated once in a test class and the exists in one instance only.RETRIEVE method, which takes data from the “Store” is static. It is assumed to be called from “production” code instead of DB selects. It acquires the instance inside and throws non-class based exception on error. This is made to avoid the necessity to handle test-related exceptions, irrelevant to the main code, and also to be able to catch the exception as SY-SUBRC value. SY-SUBRC can be checked later similarly to regular DB select. So the interference with the main code is minimal.The most convenient way to install the package is to use abapGit - it is easily installed itself and then a couple of click to clone the repo into the system. There is also an option for offline installation - download the repo as zip file and import it with abapGit. Unit test execution is always recommended after installation.
The package contains 2 subpackages: core (the tool itself), devtools (switch source program), and examples (example programs). The latter 2 can be skipped for the deserialization in target systems (abapGit supports filename filtering - specify */examples/* in the corresponding repo setting).
Dependencies (to install before mockup loader):
Zipped mockups slug is supposed to be uploaded as a MIME object via SMW0. However, during data or test creation, it is more convenient (and faster) to read local file. In particular, not to upload ‘draft’ test data to the system before it is ready, interfering with other developers. It is also very convenient to use in conjunction with java script mockup compiler (see “Conversion from Excel” section below).
To normally code the mockup source via i_type and i_path parameters to the create method. To temporarily switch to another source you can use the transaction ZMOCKUP_LOADER_SWSRC. It will initialize SET/GET parameters ZMOCKUP_LOADER_STYPE and ZMOCKUP_LOADER_SPATH/ZMOCKUP_LOADER_SMIME which will override defaults for the current session only.
Code-wise, you can also find out if the mockup loader instance is redirected by calling is_redirected method. E.g. to issue redirection warning within your unit tests (see example in REFERENCE.md)
User’s manual:
on screen event)Upload to MIME toolbar button uploads the file to MIME storage instead of going through SMW0 (the MIME object must exist)Variants or My variants (created by your user) toolbar commands. Prefer these commands to the native variant selection (the very first button), because native variant command does not trigger on screen, so you must press Enter after choosing your variant (which is less convenient).You may have a lot of data prepared in Excel files. Many files, many sheets in each. Although Ctrl+C in Excel actually copies TAB-delimited text, which greatly simplifies the matter for minor cases, it is boring and time consuming to copy all the test cases to text. Here are special tools to simplify this workflow. Briefly: they take directory of excel files with mockup data and convert them into format compatible with mockup loader.
mockup compiler - ABAP implementation.
mockup compiler JS - java script implementation, requires nodejs environment at the developer’s machine. This tool also make it possible to compile the target zip via continuous integration flows - so the test data in excel can be a part of source repository. (I’m planning a dedicated publication on this subject).
See EXCEL2TXT.md for more info.
You are welcomed to suggest ideas and code improvements ! :) Let’s make ABAP development more convenient. Please kindly respect the code conventions
The code is licensed under MIT License. Please see the LICENSE for details.
