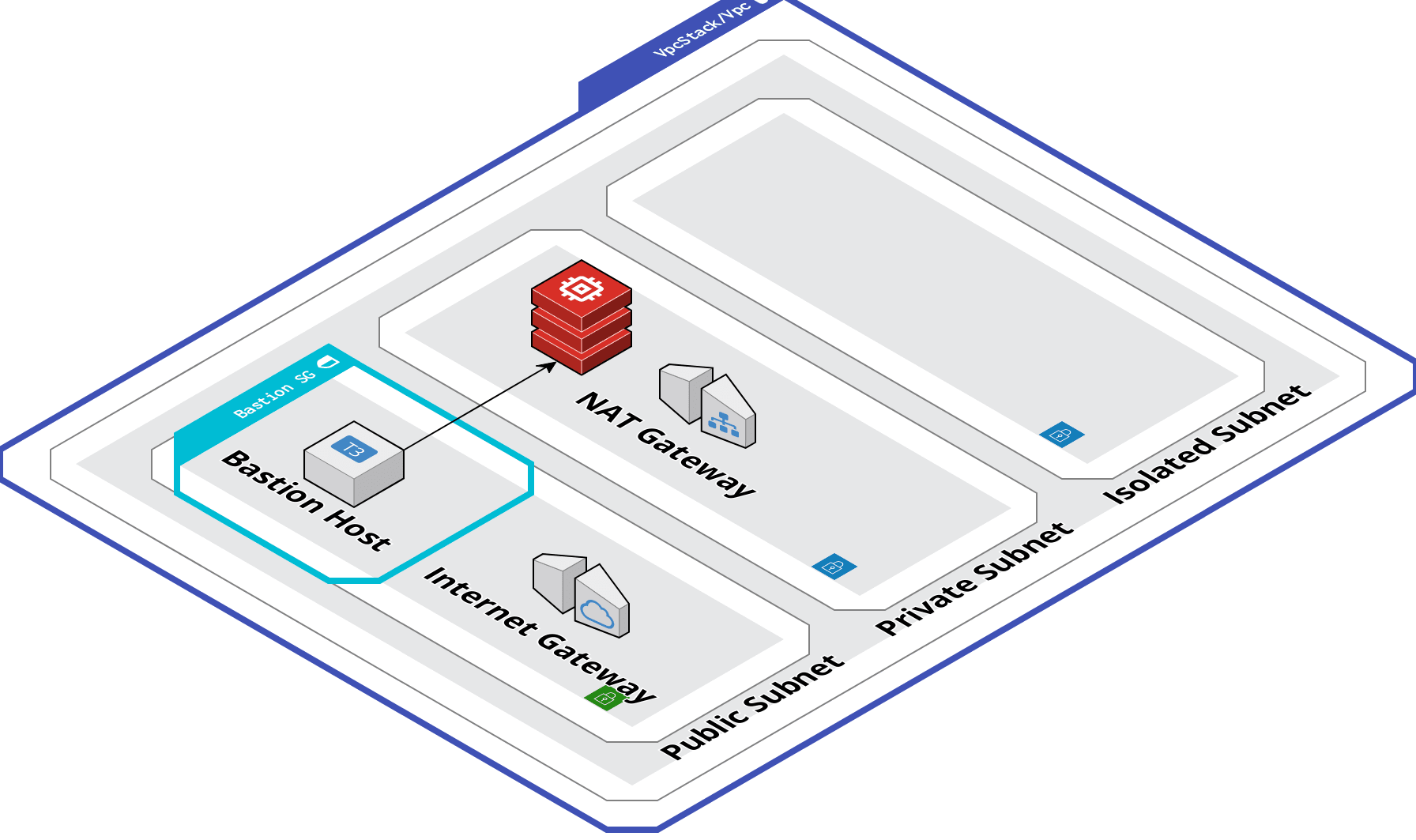

Use this CDK stack to create a redis cluster and allow bastion host to access it.

What is it?

Amazon ElastiCache allows you to seamlessly set up, run, and scale popular open-Source compatible in-memory data stores in the cloud.

Features

• Deploy a redis clusters
• Setup to allow bastion host to access it

Prerequisites

You will need the following before utilize this CDK stack:

• AWS CLI
• AWS Account and User
• Node.js
• IDE for your programming language
• AWS CDK Tookit
• AWS Toolkit VSCode Extension

Stack Explain

cdk.json

Define project-name, env and profile context variables in cdk.json

{
  "context": {
    "project-name": "container",
    "env": "dev",
    "profile": "devopsrepo"
  }
}

lib/vpc-stack.ts

Setup standard VPC with public, private, and isolated subnets.

const vpc = new ec2.Vpc(this, 'Vpc', {
  maxAzs: 3,
  natGateways: 1,
  cidr: '10.0.0.0/16',
  subnetConfiguration: [
    {
      cidrMask: 24,
      name: 'ingress',
      subnetType: ec2.SubnetType.PUBLIC,
    },
    {
      cidrMask: 24,
      name: 'application',
      subnetType: ec2.SubnetType.PRIVATE,
    },
    {
      cidrMask: 28,
      name: 'rds',
      subnetType: ec2.SubnetType.ISOLATED,
    }
  ]
});

• maxAzs - Define 3 AZs to use in this region.
• natGateways - Create only 1 NAT Gateways/Instances.
• cidr - Use ‘10.0.0.0/16’ CIDR range for the VPC.
• subnetConfiguration - Build the public, private, and isolated subnet for each AZ.

Create flowlog and log the vpc traffic into cloudwatch

vpc.addFlowLog('FlowLog');

lib/security-stack.ts

Get vpc create from vpc stack

const { vpc } = props;

Create security group for bastion host

const bastionSecurityGroup = new ec2.SecurityGroup(this, 'BastionSecurityGroup', {
  vpc: vpc,
  allowAllOutbound: true,
  description: 'Security group for bastion host',
  securityGroupName: 'BastionSecurityGroup'
});

• vpc - Use vpc created from vpc stack.
• allowAllOutbound - Allow outbound rules for access internet
• description - Description for security group
• securityGroupName - Define the security group name

Allow ssh access to bastion host

bastionSecurityGroup.addIngressRule(ec2.Peer.anyIpv4(), ec2.Port.tcp(22), 'SSH access');

Create security group for redis

const redisSecurityGroup = new ec2.SecurityGroup(this, 'RedisSecurityGroup', {
  vpc: vpc,
  allowAllOutbound: true,
  description: 'Security group for Redis Cluster',
  securityGroupName: 'RedisSecurityGroup'
});

Allow access from bastion host

redisSecurityGroup.addIngressRule(bastionSecurityGroup, ec2.Port.tcp(6379), 'Access from bastion host');

lib/bastion-stack.ts

Get the vpc and bastionSecurityGroup from vpc and security stacks.

const { vpc, bastionSecurityGroup } = props;

Get profile from context variables

const profile = this.node.tryGetContext('profile');

Create bastion host instance in public subnet

const bastionHostLinux = new ec2.BastionHostLinux(this, 'BastionHostLinux', {
  vpc: vpc,
  securityGroup: bastionSecurityGroup,
  subnetSelection: {
    subnetType: ec2.SubnetType.PUBLIC
  }
});

• vpc - Use vpc created from vpc stack.
• securityGroup - Use security group created from security stack.
• subnetSelection - Create the instance in public subnet.

Display commands for connect bastion host using ec2 instance connect

const createSshKeyCommand = 'ssh-keygen -t rsa -f my_rsa_key';
const pushSshKeyCommand = `aws ec2-instance-connect send-ssh-public-key --region ${cdk.Aws.REGION} --instance-id ${bastionHostLinux.instanceId} --availability-zone ${bastionHostLinux.instanceAvailabilityZone} --instance-os-user ec2-user --ssh-public-key file://my_rsa_key.pub ${profile ? `--profile ${profile}` : ''}`;
const sshCommand = `ssh -o "IdentitiesOnly=yes" -i my_rsa_key ec2-user@${bastionHostLinux.instancePublicDnsName}`;
new cdk.CfnOutput(this, 'CreateSshKeyCommand', { value: createSshKeyCommand });
new cdk.CfnOutput(this, 'PushSshKeyCommand', { value: pushSshKeyCommand });
new cdk.CfnOutput(this, 'SshCommand', { value: sshCommand});

lib/redis-stack.ts

Get the vpc and redisSecurityGroup from vpc and security stack

const { vpc, redisSecurityGroup } = props;

Get projectName and env from context variables

const projectName = this.node.tryGetContext('project-name');
const env = this.node.tryGetContext('env');

Get all private subnet ids

const privateSubnets = vpc.privateSubnets.map((subnet) => {
  return subnet.subnetId
});

Create redis subnet group from private subnet ids

const redisSubnetGroup = new redis.CfnSubnetGroup(this, 'RedisSubnetGroup', {
  subnetIds: privateSubnets,
  description: "Subnet group for redis"
});

• subnetIds - Assign the subnet ids to redis subnet group
• description - Define the description for redis subnet group

Create Redis Cluster

const redisCluster = new redis.CfnCacheCluster(this, 'RedisCluster', {
  autoMinorVersionUpgrade: true,
  cacheNodeType: 'cache.t2.small',
  engine: 'redis',
  numCacheNodes: 1,
  cacheSubnetGroupName: redisSubnetGroup.ref,
  clusterName: `${projectName}${env}`,
  vpcSecurityGroupIds: [redisSecurityGroup.securityGroupId]
});

• autoMinorVersionUpgrade - Allow auto upgrade for minor version.
• cacheNodeType - Use ‘cache.t2.small’ for node type.
• engine: Use redis.
• numCacheNodes: Use 1 cache node.
• cacheSubnetGroupName: Use redisSubnetGroup for cacheSubnetGroupName.
• clusterName: Define the clusterName using project and env name pattern.
• vpcSecurityGroupIds: Define the array for security group ids.

Define this redis cluster is depends on redis subnet group created first

redisCluster.addDependsOn(redisSubnetGroup);

Deploy all the stacks to your aws account.

cdk deploy '*'
or
cdk deploy '*' --profile your_profile_name

Useful commands

NPM commands

• npm run build compile typescript to js
• npm run watch watch for changes and compile
• npm run test perform the jest unit tests

Toolkit commands

• cdk list (ls) Lists the stacks in the app
• cdk synthesize (synth) Synthesizes and prints the CloudFormation template for the specified stack(s)
• cdk bootstrap Deploys the CDK Toolkit stack, required to deploy stacks containing assets
• cdk deploy Deploys the specified stack(s)
• cdk deploy '*' Deploys all stacks at once
• cdk destroy Destroys the specified stack(s)
• cdk destroy '*' Destroys all stacks at once
• cdk diff Compares the specified stack with the deployed stack or a local CloudFormation template
• cdk metadata Displays metadata about the specified stack
• cdk init Creates a new CDK project in the current directory from a specified template
• cdk context Manages cached context values
• cdk docs (doc) Opens the CDK API reference in your browser
• cdk doctor Checks your CDK project for potential problems

Pricing

As this cdk stack will create aws elasticache service, please refer the following link for pricing

• Amazon ElastiCache pricing
