SparkFun LilyPad RGB LED

SparkFun LilyPad RGB LED

SparkFun LilyPad RGB LED (DEV-13735)

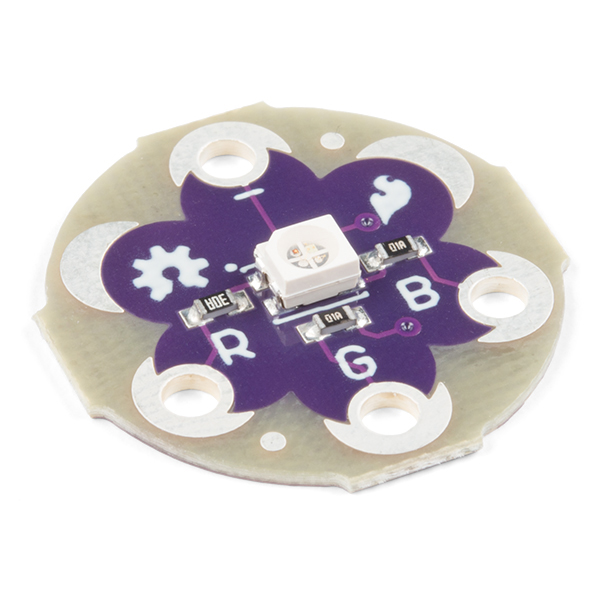

Use the LilyPad RGB LED board as a simple indicator, or by pulsing the red, green, and blue channels, you can create any color.
This is a common cathode design - to turn on a channel you simply need to connect each R/G/B pins to a power source in order to illuminate that channel.

Note: The original product name was called “LilyPad Tri-Color LED.” V2.0 was renamed as the “LilyPad RGB LED.”

Repository Contents

  • /Firmware - Arduino example code
  • /Hardware - All Eagle design files (.brd, .sch)

Documentation

Version History

  • v2.0 - v2.0, common cathode
  • v1.6 - Initial Release, common anode

License Information

The hardware is released under Creative Commons ShareAlike 4.0 International.

A portion of this sale is given back to Dr. Leah Buechley for continued development and education of e-textiles.

Distributed as-is; no warranty is given.
